Hydraulic Arm
Inter-Engineering

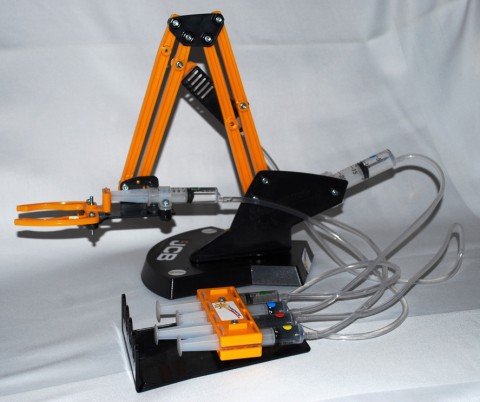

A highly visual and colourful, manually operated arm demonstrating hydraulics and parallel linkages.
(Instructions available on application to Toni Fletcher, Imagineering Admin Manager - admin@imagineeringfoundation.onmicrosoft.com)
Key Points
- assemble with screws & nuts
- fill lines with water
- takes 3 weeks
Topics covered
- Mechanical linkage assembly and control
- Pressure and hydraulics
- Levers
Hydraulic Line Filling
