Fuse Tester

Junior EngineeringInter-Engineering

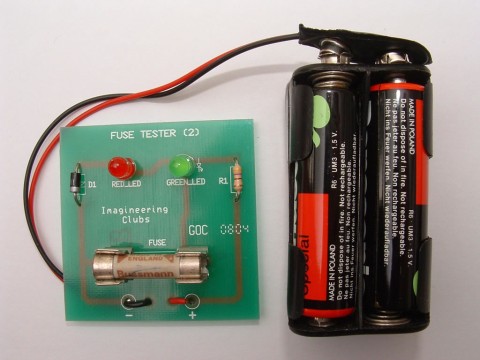

This project is the first one after soldering practice, and allows the student to assemble a pcb complete with some very simple components. It is a useful little device that allows you to test plug fuses with the LED shining Green if they are ok to use, and Red if they are not working.

fuse tester pcb

Key Points

  • Moderate Construction
  • Requires Soldering
  • Duration 2 weeks

Topics covered

  • Introduces Printed Circuit Boards
  • Introduces Resistors, Diodes, LEDs
